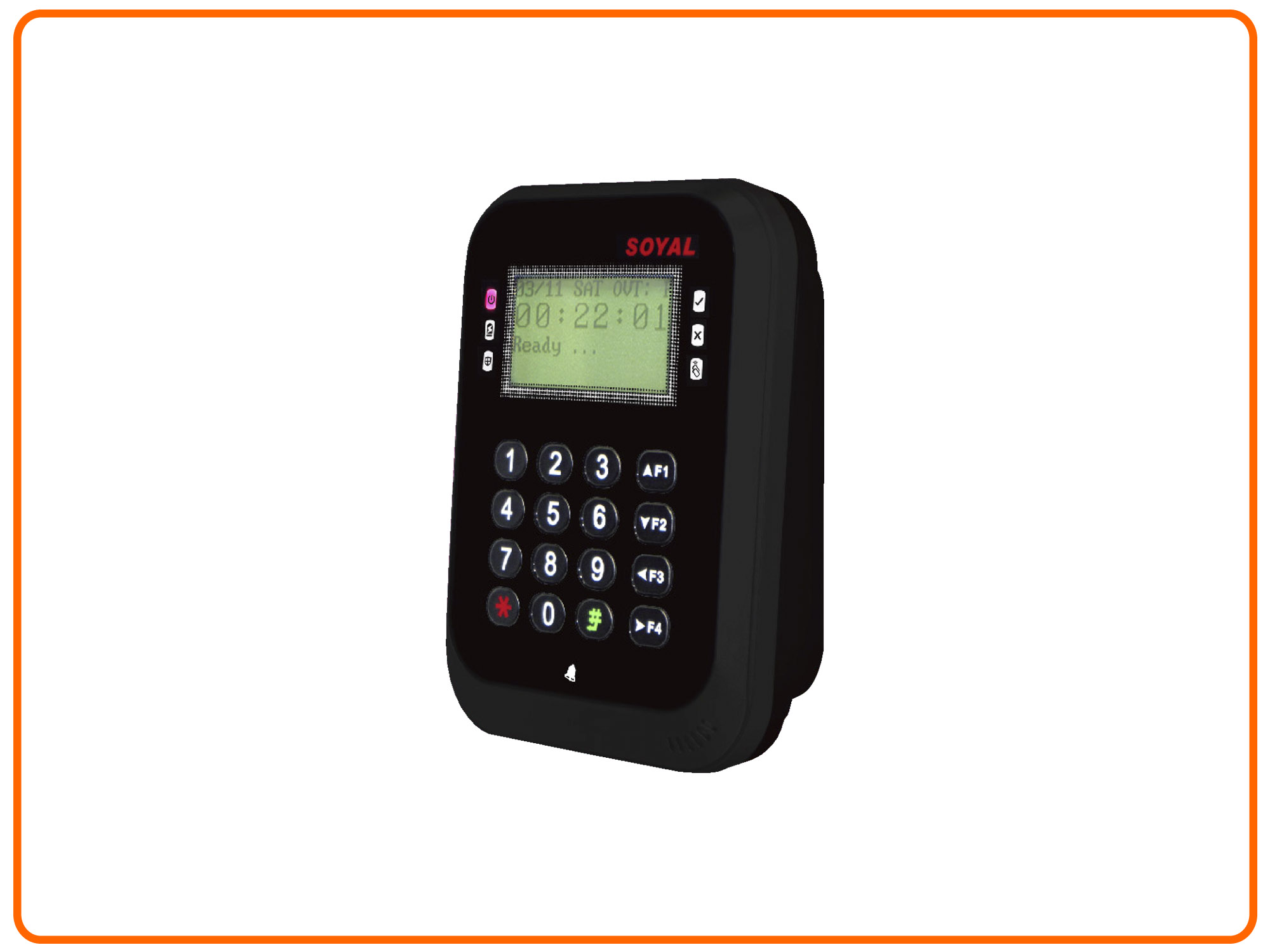

AR-837Ei_W3AR-837Ei_W3
AR-837E

เครื่องอ่านบัตรทาบ รองรับ 16000 ใบ


จุดเด่น

◎ Capacity to Built-in Voice module
◎ Built-in Door Bell button
◎ Illuminated Keypad Design for more visual operation
◎ Weatherproof Design for outdoor use◎ RS-485 and TCP/IP communication interface
◎ Built-in Watch Dog to prevent the halting
◎ User capacity: 16,000; Event logs: 32,000
◎ 2 control modes: M4/ M8
◎ Access Mode: Card Only, Card or PWD, Card and PWD
◎ 63 auto-open zone settings and 16 sets of Auto-Open Zone editable
◎ WG port provides anti-pass-back function
◎ One more Exit Switch, Door Contact and Door Output to wiegand
◎ Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
◎ SOYAL software support for networking
◎ Easily integrated with SOYAL or others access control system
◎ Work attendance check: Push buttons to select Duty on/off work, Leave/Back and Overtime on/off
◎ Built-in Real Time Clock & Anti-Tamper functions
◎ Flexible to integrate with other equipments
◎ 125kHz and 13.56MHz can be used simultaneously two channels
◎ Patent for new type of Relay, avoid vibrating to Mis-Trigger
◎ TTL & RS-485 serial output for various application and lift control
◎ Built-in 16 set of Alarm and 120 days of Holiday setting
◎ Menu setting with LCD panel
◎ Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image-monitor function
◎ Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
◎ Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open
◎ Intelligent to shift for standalone or networking mode while system disconnected
◎Support Fire buttons to make sure the fire happening, all doors open
◎Supporting AR-721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation.

คุณลักษณะ

Item NO. AR-837-E
User Capacity 16,000 Users , 64 floors
32,000 Users , 32 floors(By order)
65,000 Users , 16 floors(By order)
Communication Interface RS-485/9600 bps(N,8,1)
TCP/IP(By Order)
Frequency 125kHz or 13.56MHz or Dual Band (125kHz+13.56MHz)
Installation Environment IP55
Intput 2 Egress(R.T.E.) / 2 Door Sensor / Tamper Switch
Output Door×2 / Alarm / Door Bell / Security Output / Arming Output / Duress Output
Fingerprint Template No
Other Interface WG lnput
WG Output(By order)
UARTX2(TTL4800~115200)
Keypad Material Rubber
LCD Yes
Floors Capacity 64 floors
32 floors(By order)
16 floors(By order)
Time-zone 63
Weight(g) E:230±10
EE:395±10
Dimension(mm) E:128(L)X94(W)X40(H)/25(H)
EE:128(L)X147(W)X40(H)/25(H)
