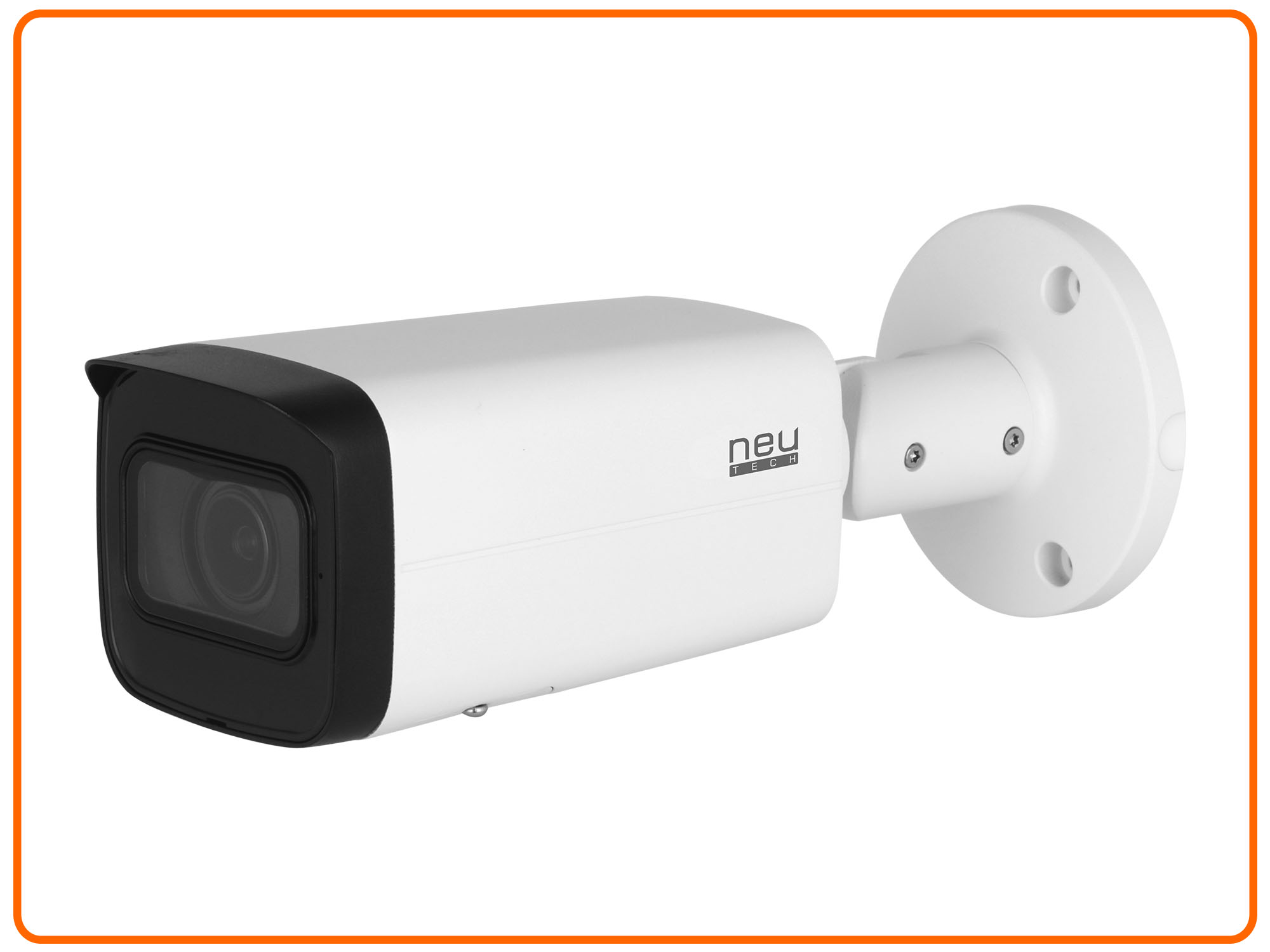

IBM2541M-ZAS

กล้องไอพีทรงกระบอก 5 ล้านพิกเซล เลนส์ 2.7-13.5 มม.


คุณลักษณะ



Camera
Image Sensor 1/2.7″ CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator On)
S/N Ratio > 56 dB
Illumination Distance Up to 60 m (196.85 ft) (IR LED)
Illuminator On/Off Control Auto; Manual
Illuminator Number 4 (IR LED)
Pan/Tilt/Rotation Range Horizonal: 0°–360°, Vertical: 0°–90°, Rotation: 0°–360°
Lens
Lens Type Motorized Vari-Focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View H: 113°–31°; V: 58°–18°; D: 138°–36°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64.0m (210.0ft) 25.6m (84.0ft) 12.8m (42.0ft) 6.4m (21.0ft)
T 210.0m (689.0ft) 84.0m (275.6ft) 42.0m (137.80ft) 21.0m (68.90ft)
Smart event
IVS (Perimeter Protection) Tripwire; Intrusion(The Two Functions Support the Classification and Accurate Detection of Vehicle and Human)
Smart Search Work Together with Smart NVR to Perform Refine Intelligent Search, Event Extraction and Merging to Event Videos
Video
Scene Self-Adaptation (SSA) Yes
White Balance Auto/Natural/Street Lamp/Outdoor/Manual/Regional Custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 Areas, Rectangular)
Region of Interest(RoI) Yes (4 Areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 Resolution and Lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD Card; SD Card Full; SD Card Error; Network Disconnection; IP Conflict; Illegal Access; Motion Detection; Video Tampering; Intrusion; Tripwire; Scene Changing; Audio Detection; Voltage Detection; Defocus Detection; External Alarm; SMD; Safety Exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video Encryption; Firmware Encryption; Configuration Encryption; Digest; WSSE; Account Lockout; Security Logs; IP/MAC Filtering; Generation and Importing of X.509 Certification; Syslog; HTTPS; 802.1x; Trusted Boot; Trusted Execution; Trusted Upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total Bandwidth: 48 M)
Storage FTP; SFTP; Micro SD Card (Support Max. 256 GB); NAS
Browser IE, Chrome, Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Port
Audio Input 1 Channel (RCA Port)
Audio Output 1 Channel (RCA Port)
Alarm Input 1 Channels In: 5 mA 3–5 VDC
Alarm Output 1 Channel Out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+Intelligence On +WDR +IR On): 7.1 W (12 VDC); 8.5 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection Grade IP67, IK10 (Optional)
Structure
Casing Metal
Product Dimensions 238.5 mm × 90.7 mm × 90.7 mm (9.39″ × 3.57″ × 3.57″) (L × W × H)
Net Weight 0.77 kg (1.70 lb)
Gross Weight 1.01 kg (2.23 lb)
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
