PR14G-B

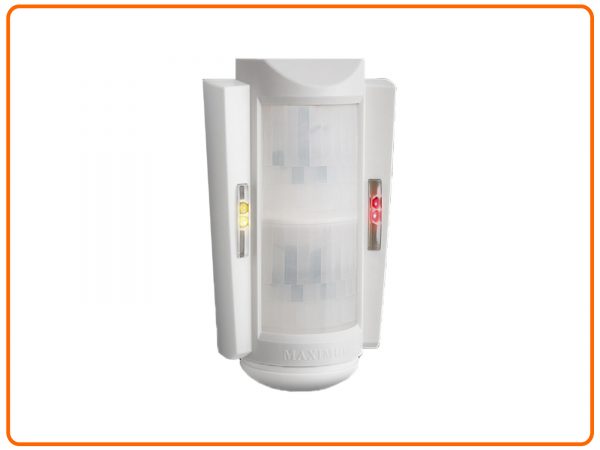

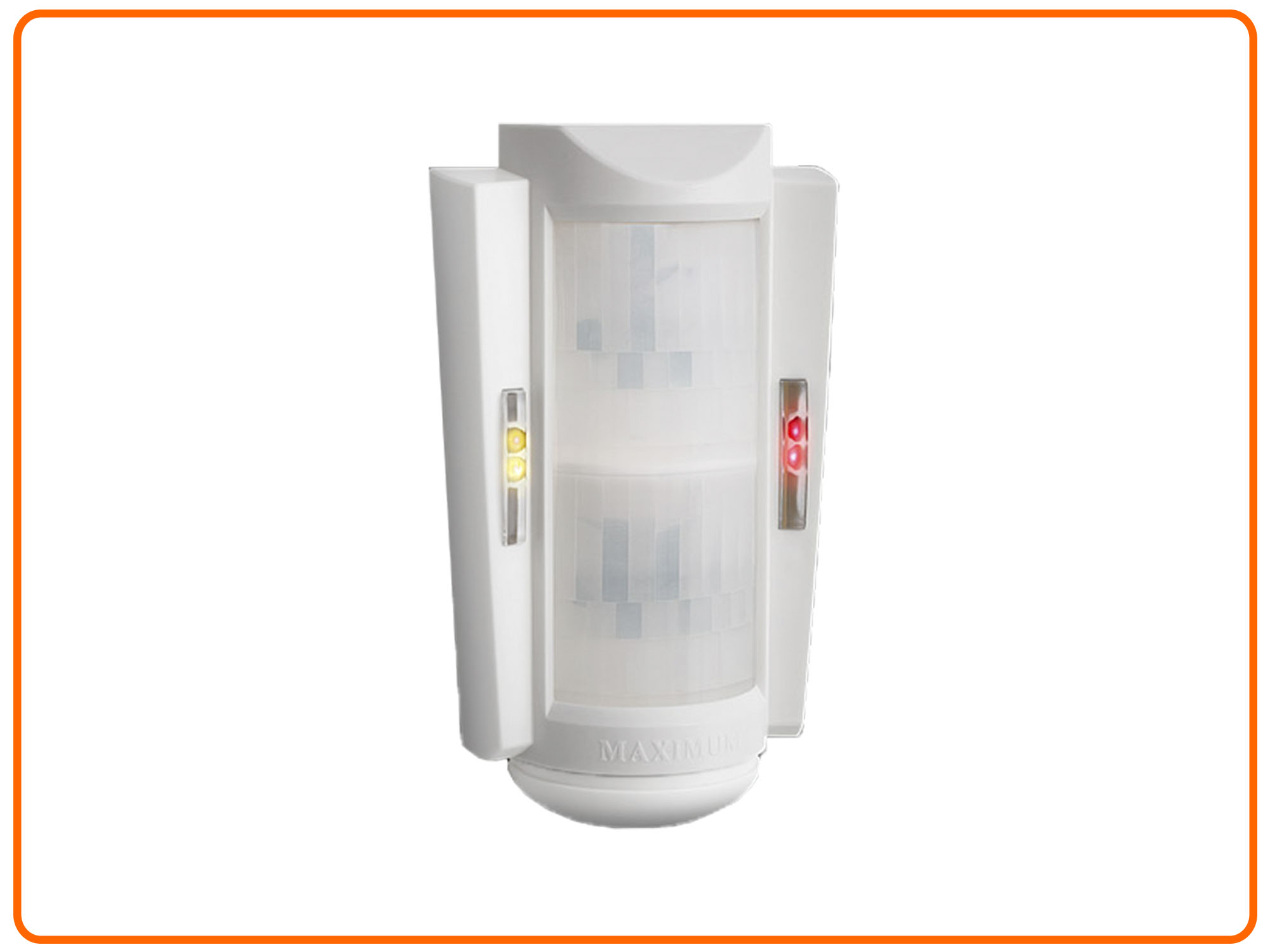

Outdoor Motion Detector


Specification

  • 4-dimensional, all-in-one motion detector.
  • Two PIR sensors.
  • Microwave sensor.
  • Waterproof and all-weather resistant.
  • Pet immune.
  • Frontal Anti-masking, by active infrared.
  • Anti-vandalism sensor, Shock & Vibration sensor (Option).
  • Lighting immune.
  • Microprocessor controlled.
  • Selectable PIR detection sensitivity.
  • Selectable Microwave detection sensitivity.
  • Selectable detection technology combination (AND/OR).
  • Memory latched input.
  • Wide-angle (110°) field-of-view.
  • Auto temperature compensation.
  • High level of RFI/EMI immunity.
  • Vertical adjustment.
  • Multi-directional Mounting BRACKET (Option).
Power Suppy 11 to 14V DC
 Current drain  24mA @ 12V
 Alarm contacts endurance  Changeover relay (N.C. or N.O.) 0.25A/50V DC (Max)
 Masking contacts endurance  (N.C.) 0.1A/28V DC (Max)
 Tamper switch contacts  (N.C.) 0.1A/28V DC (Max)
 Warm-up time  1 Minute
 Detection speed  0.1 ~ 5 m/sec.
 Response time to masking  Up to 2 Minutes
 Masking relay activation time  time of masking (at least 2 Sec.)
 RFI immunity  (-)37°C ~ 70°C (-4°F ~ 158°F)
Humidity withstand 95%
Microwave frequency 10.525 GHz
Dimensions 160 x 95 x 59 mm (HxWxD)
Weight 130 gr.
